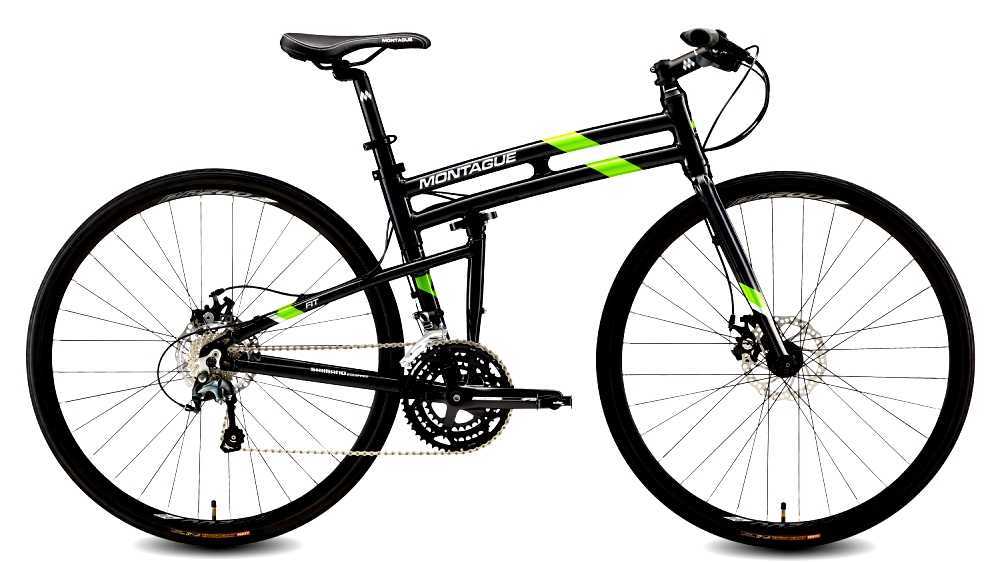

FIT | Montague Bikes
src: www.montaguebikes.com

A folding bicycle is a bicycle designed to fold into a compact form, facilitating transport and storage. When folded, the bikes can be more easily carried into buildings, on public transportation (facilitating mixed-mode commuting and bicycle commuting), and more easily stored in compact living quarters or aboard a car, boat or plane.

Folding mechanisms vary, with each offering a distinct combination of folding speed, folding ease, compactness, ride, weight, durability, and price. Distinguished by the complexities of their folding mechanism, more demanding structural requirements, greater number of parts, and more specialized market appeal, folding bikes may be more expensive than comparable non-folding models. The choice of model, apart from cost considerations, is a matter of resolving the various practical requirements: a quick easy fold, a compact folded size, or a faster but less compact model.

There are also bicycles that provide similar advantages by separating into pieces rather than folding.


Video Folding bicycle



History

Military interest in bicycles arose in the 1890s, and the French army and others deployed folding bikes for bicycle infantry use. In 1900, Mikael Pedersen developed for the British army a folding version of his Pedersen bicycle that weighed 15 pounds and had 24 inch wheels. It included a rifle rack and was used in the Second Boer War.

In 1941, during the Second World War, the British War Office called for a machine that weighed less than 23 lb (this was not achieved - the final weight was about 32 pounds) and would withstand being dropped by parachute. In response, the Birmingham Small Arms Company (BSA) developed a folding bicycle small enough to be taken in small gliders or on parachute jumps from aircraft.

This British WWII Airborne BSA folding bicycle was rigged so that, when parachuted, the handlebars and seat were the first parts to hit the ground (as bent wheels would disable the bike). BSA abandoned the traditional diamond bicycle design as too weak for the shock and instead made an elliptical frame of twin parallel tubes, one forming the top tube and seat stays, and the other the chainstay and down tube. The hinges were in front of the bottom bracket and in the corresponding position in front of the saddle, fastened by wing nuts. The peg pedals could be pushed in to avoid snagging and further reduce the space occupied during transit.

From 1942-1945, the British WWII Airborne BSA folding bicycle was used by British & Commonwealth airborne troops, Commandos, and some infantry regiments; some were also used as run-abouts on military bases. The bicycle was used by British paratroopers, Commandos, and second-wave infantry units on the D-Day landings and at the Battle of Arnhem.

The 1970s saw increased interest in the folding bike, and the popular Raleigh Twenty and Bickerton Portable have become the iconic folders of their decade. It was, however, the early 1980s that can be said to have marked the birth of the modern, compact folding bicycle, with competing tiny-footprint models from Brompton and Dahon. Founded in 1982, by inventor and physicist Dr. David Hon and his brother Henry Hon, Dahon has grown to become the world's largest manufacturer of folding bikes, with a two-thirds marketshare in 2006.


Maps Folding bicycle



Size

Folding bikes generally come with a wider range of adjustments for accommodating various riders than do conventional bikes, because folding bike frames are usually only made in one size. However, seatposts and handlebar stems on folders extend as much as four times higher than conventional bikes, and still longer after-market posts and stems provide an even greater range of adjustment.

While folders are usually smaller in overall size than conventional bicycles, the distances among the center of bottom bracket, the top of the saddle, and the handlebars - the primary factors in determining whether or not a bicycle fits its rider - are usually similar to those of conventional bikes. The wheelbase of many folding designs is also very similar to that of conventional, non-folding, bicycles.

Some manufacturers are producing folding bikes designed around folding systems that allow them to use 26" wheels, e.g., Dahon, KHS, Montague, and Tern Bicycles. Advantages of smaller wheels include potential for more speed, quicker acceleration, greater maneuverability, and easier storage. For example, the A-bike is similar to the Strida but has tiny wheels and folds a bit smaller. Bikes with smaller than 16" wheels are often called portable bicycles. These forgo the performance and easy ride benefits of their larger counterparts, acquiring characteristics similar to those of an adult folding kick scooter. Nonetheless, regardless of how each bike folds, the result is easier to transport and store than a traditional bicycle.


Folding bike was a complete mobility solution that allowed someone ...
src: s-media-cache-ak0.pinimg.com


Folding methods

Folding mechanisms are highly variable.

Half- or mid-fold

Many folding frames follow the classic frame pattern of the safety bicycle's diamond frame, but feature a hinge point (with single or double hinges) allowing the bicycle to fold approximately in half. Quick-release clamps enable raising or lowering steering and seat columns. A similar swing hinge may be combined with a folding steering column. Fold designs may use larger wheels, even the same size as in non-folders, for users prioritizing ride over fold compactness. Bikes that use this kind of fold include, Dahon, and Montague, and Tern.

Vertical Fold

Instead of folding horizontally, this style of bike has one or two hinges along the main tube and/or chain and seat stays that allow the bike to fold vertically. The result leaves the two wheels side by side but is often more compact than a horizontally hinged design. The Brompton and Dahon Qix D8 both feature vertical folding.

Triangle hinge

A hinge in the frame may allow the rear triangle and wheel to be folded down and flipped forward, under the main frame tube, as in the Bike Friday, Brompton Mezzo Folder, and Swift Folder. Such a flip hinge may be combined with a folding front fork, as in the Birdy. Swing and flip hinges may be combined on the same frame, as in the Brompton Mezzo Folder and Dahon, which use a folding steering column. Folding mechanisms typically involve latches and quick releases, which affect the speed of the fold/unfold. Bike Friday offers a model, the Tikit, featuring a cable-activated folding mechanism requiring no quick releases or latches, for increased folding speed.

Magnet folding and suspension system

A magnet combined with a rear shock absorber forms the folding mechanism. The magnet connects and locks the back wheel section to the frame. To fold the bike in half, the magnet disconnects with one movement and in a second, and without having to use one's hands, the rear wheel rotates forward, and the bike folds vertically. This mechanism also enables one to roll the half-folded bike on its rear wheel.

Break away and other styles

Bikes may partly fold and partly disassemble for packing into a standard or custom sized suitcase for air travel (e.g., Airnimal and Bike Friday). Other variations include: Bicycle Torque Coupling, a proprietary connector system that can be retrofitted to a standard frame; the Gekko, which folds from the seat tube like an upside down umbrella; the Giatex, which folds and retracts, adjusting to the size of the rider; the iXi, which literally breaks into two halves; and the Strida, which has a triangular frame and folds to resemble a unicycle.

Folding mechanisms may incur more cost and weight, allow folding smaller, and they tend to use smaller wheels. 24 inch wheels are the largest for which flip hinges are generally used, but smaller wheels, typically 16 or 20 inches, are more common.

Smaller size does not mean lighter weight, as most of these designs forgo the bracing benefits of the diamond frame and must compensate as a step-through frame does, with thicker metal. The step-through design is a boon to a wider range of rider size, age, and physical ability.

Another system found on folders, such as Montague Bikes, utilizes the seat tube as a pivot point for the frame to fold. This system uses a tube within a tube design to give the bike more torsional stiffness. It allows the user to fold the bike without "breaking" any vital tubes down, thus preserving the structural integrity of the diamond frame. This system is operated by a single quick release found along the top tube of the bike.


File:Paris folding bike-2.jpg - Wikimedia Commons
src: upload.wikimedia.org


Portability

The real purpose of folding a bike is to increase its portability. This is so that it may be more easily transported and stored, and thus allow greater flexibility in getting from A to B. Many public transportation systems ban or restrict unfolded bicycles, but allow folded bikes all or some of the time. For example, Transport for London allows folding bikes at all times on the Underground, but on buses it is down to the driver's discretion. Some transport operators only allow folding bicycles if they are enclosed in a bag or cover. Airline baggage regulations often permit folding bikes as ordinary luggage, without extra cost. Singapore has also implemented new laws to allow folding bicycles in its rail and bus transportation system, with certain size and time limitations.


Amazon.com : Xspec 26
src: images-na.ssl-images-amazon.com


Examples

Notable folding bicycles include:



Bicycle Folding - Best Seller Bicycle Review
src: www.montaguebikes.com


See also

  • List of bicycle manufacturing companies
  • Outline of cycling
  • Portable bicycle - a folding bicycle that is small and light enough to be easily carried afoot or in a cramped vehicle. Portable bicycles compromise riding capability for portability. The technology of portable bicycles constantly evolves, as new concepts and materials are proposed every few years.
  • Small wheel bicycle
  • Swing bicycle

Folding Bicycle | Inhabitat - Green Design, Innovation ...
src: inhabitat.com


References


Paratrooper | Montague Bikes
src: www.montaguebikes.com


Bibliography

  • Guinness World Records 2000 Millennium Edition. New York: Guinness Publishing Ltd./Bantam Books. 2000. ISBN 0-553-58268-2.

Retrospec Speck SS Folding Bicycle Review - A Single Speed ...
src: www.foldingbike20.com


Further reading

  • Hadland, Tony. It's in the Bag! a History in Outline of Portable Cycles in the UK. ISBN 0-9507431-8-6.
  • Gerson, Jen (22 October 2005). "Know when to fold 'em". Toronto: Globe and Mail.
